The Voyage of                  INTREPID Line Picture of Intrepid, a Dorado designed by Jim Michalak
Home button Next button Back button "Docking Cleats"

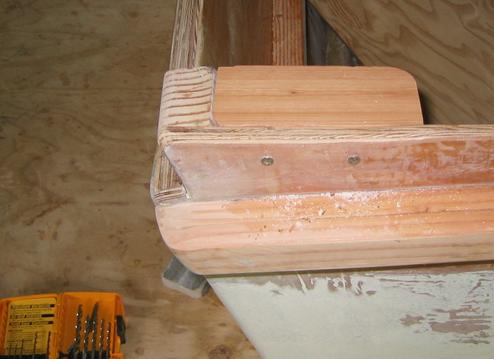

Intrepid has an 8-inch anchor cleat on her bow deck. I now needed something on the stern to tie up to. So, I just cut a block of wood to fit, and attached it temporarily with two stainless screws.

A block of wood was cut to fit and attached with two stainless screws

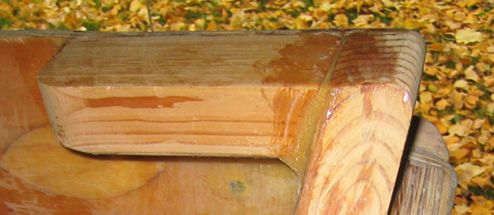

The block is properly bedded in epoxy and wood flour.

The block is properly bedded in epoxy and wood flour


On the outside surface of the transom frame you may be able to see the tell tale signs of the strip of fiberglass tape that was added for additional support. I wasn't planning on towing anything, but at the same time I did not want the side to be pulled away from the transom frame when the first big gust of wind came by.

A strip of fiberglass tape was added around the transom frame to the side of the boat

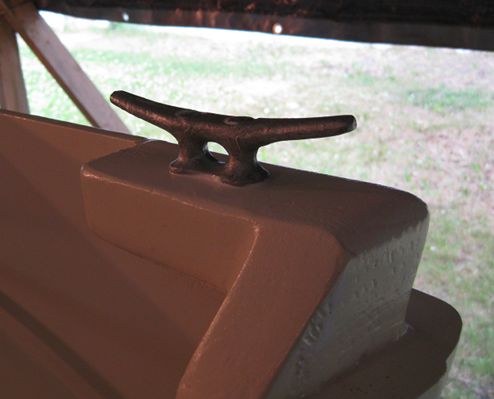

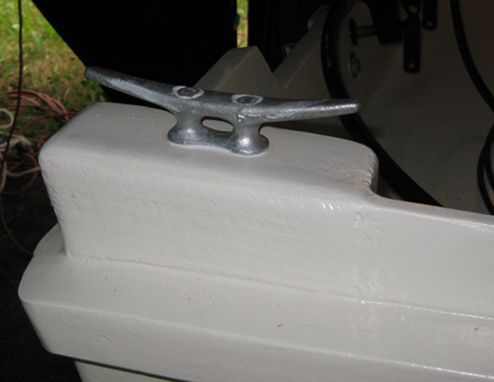

This is a 5-inch galvanized cleat with galvanized bolts clamping it to the mounting block. There is a second cleat mounted to the port stern. These pieces of hardware are bedded in my favorite flexible sealant.

This is a 5-inch galvanized cleat with galvanized bolts clamping it to the mounting block

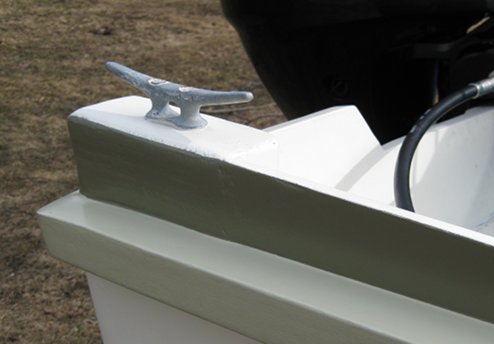

The starboard rear-docking cleat as on the boat in current colors.

The starboard rear docking cleat as on the boat in current colors
